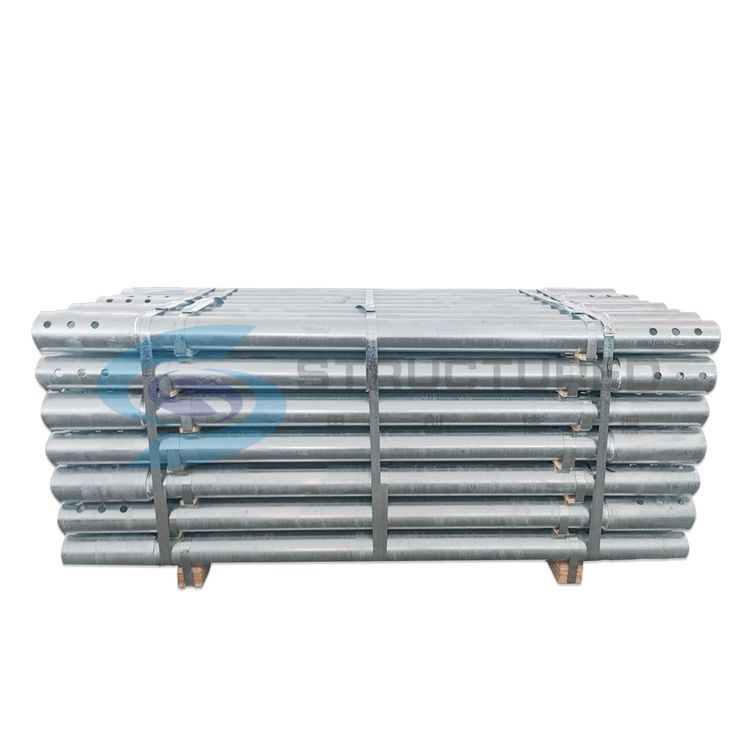

Helical Pier12

Top-tier Screw Pile Tech, Superior Quality, Diverse Styles, Applicable to Multiple Fields. 15 Years of Manufacturing Experience, Products Exported to Over 100 Countries Worldwide.

Why choose us?

Why Our Screw Piles Are Trusted Worldwide

High-Quality Helical Blades
Certified Welding Quality
Material Selection & Professional OEM Service
International Material Equivalency
Our Commitment

High-Quality Helical Blades – Core of Screw Pile Performance

The helical blade is the heart of the screw pile. Only True Helix Blades ensure:

Stable penetration at one pitch per revolution;

Avoiding soil auguring or voids, ensuring true load capacity;

Accurate weld positioning and consistent weld quality;
We use rotational pressing technology to guarantee precise pitch, angle, and geometry, ensuring both installation efficiency and long-term design integrity.
Backed by the guidance of Canadian professional engineers and more than 15 years of hands-on manufacturing experience, our screw pile production process has been refined into a world-class standard of quality.
International research has proven that blade geometry directly determines pile performance—poorly formed blades significantly weaken both installation efficiency and ultimate capacity.

High-quality blades = High-quality screw piles.

Certified Welding Quality – Internationally Recognized

All welding follows ISO 9001 Quality System, with certifications including:

CWB (Canadian Welding Bureau) W47.1 Certification – Canada’s highest welding quality standard;

CE Certification – Compliance for EU markets.

CWB certification is recognized as equivalent to:

AWS D1.1 (United States);

oAS/NZS 1554 (Australia);

oEN ISO 3834 (European Union).

Our welding quality fully meets North American, European, and Australian standards.

Standard material: Q355B steel pipe & plate;

Optional material (per client request): Q235B steel pipe & plate;

Both materials are internationally equivalent and recognized.

Under Canadian engineering supervision, we combine strict material selection with proven OEM/Design-Assistant OEM capability to ensure top performance.

We provide OEM and Design-Assistant OEM services, tailoring screw piles to your project’s design requirements.

International Material Comparison Chart

China	America(ASTM/ASME)	Australia/New Zealand (AS/NZS)	Europe (EN)	Remarks
Q355B	ASTM A572 Grade 50 / A992	AS/NZS 3679.1 Grade 350	EN S355JR / S355JO / S355J2	High-Strength Structural Steel, Yield Strength ≥ 355MPa
Q235B	ASTM A36	AS/NZS 3679.1 Grade 250	EN S235JR / S235JO / S235J2	Mild Structural Steel， Yield Strength ≥ 235MPa

Conclusion：Both Q355B and Q235B have direct international equivalent materials. Customers can use them with confidence, as they comply with the engineering standards of North America, Europe and Australia.

With Canadian engineering expertise + 15 years of manufacturing experience, we ensure every screw pile we deliver reflects:

Rigorous material selection;

Precision blade forming;

Internationally certified welding quality.

Structured Screw Pile China Ltd stands for true design, reliable performance, and globally trusted quality.
