Wuyun Expressway Signal Sign Project

Project Information

Project Location: Jiaozuo City, Henan Province, China

Project Period: October 2016

Project Brief

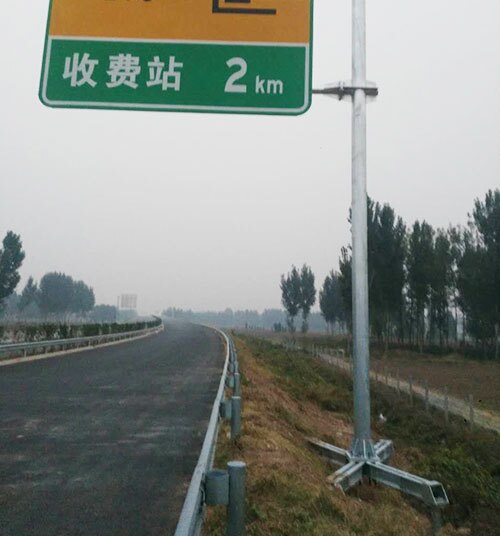

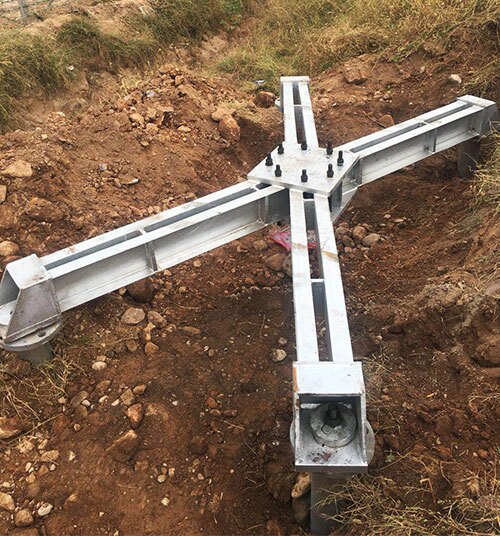

The preliminary design of the signage foundations (including cantilever, double-column, and gantry-type signboards) along the Wuzhi–Yuntaishan Expressway section originally specified concrete foundations. However, concrete construction is complex and would require excavation into high embankments. Structured’s patented helical pile design effectively resolved these challenges.

Our Solution

We provided technical recommendations and manufactured the required helical piles for this project, with a contract value of approximately RMB 80,000.

Our Role in the Project

1.Recommended the technical parameters of the helical pile foundations for the signage structures.

2.Determined an optimal design scheme and pile type based on geotechnical investigations and load analysis.

3.Manufactured and supplied the helical piles for the project.

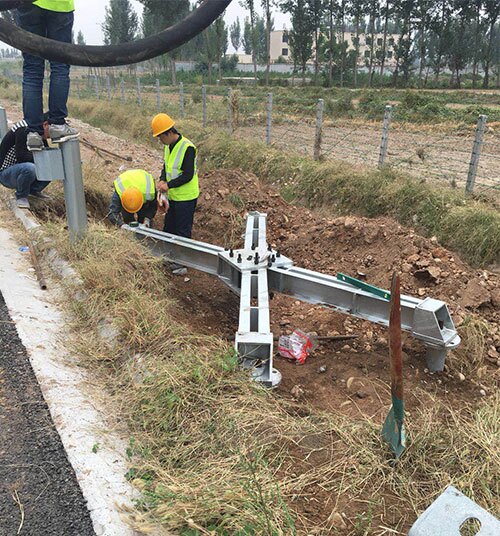

4.Provided on-site construction guidance.

Project Benefits

1.The patented helical pile design significantly improved the horizontal safety factor of signage installed in wind-prone sections.

2.Rapid helical pile installation avoided excavation of high embankments, shortened the construction period, and reduced overall costs.

3.Free technical consulting services were provided for foundation design.

4.Free technical guidance was provided during construction.
